Table
Property | Function | Type |
Current row id | Current row id
Actions editor:
Property > Table > Current row id
Code:
widget.content.currentRowId | string |
Current firebase row id | Current firebase id
Actions editor:
Property > Table > Current firebase row id
Code:
widget.content.currentFirebaseRowId | string |
Current index | Selected item index
Actions editor:
Property > Table > Current index
Code:
widget.content.currentIndex | int |

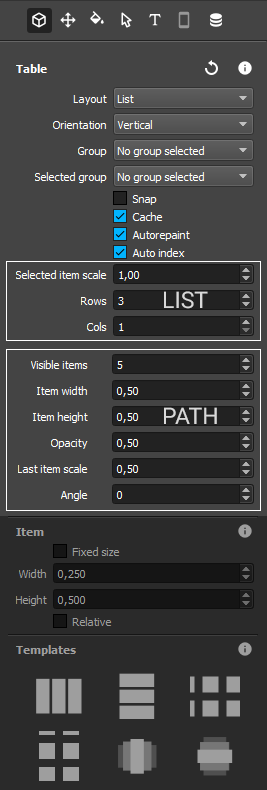

Property | Function | Type |
Layout | Determines which layout type to use. Possible values are: List or Path
Actions editor:
Property > Table > Layout > Layout
Code:
widget.content.tableLayoutType | enum
Values:
Path
List |
Orientation | Scroll vertically or horizontally, if data does not fit on one screen
Actions editor:
Property > Table > Layout > Orientation
Code:
widget.content.tableDelegateOrientation | enum
Values:
Qt::Vertical
Qt::Horizontal |
Snap | Scroll through one item at a time (for List style only)
Actions editor:
Property > Table > Layout > Snap
Code:
widget.content.tableLayoutSnap | bool |
Cache | Enable to cache items
Actions editor:
Property > Table > Layout > Cache
Code:
widget.content.tableImageCache | bool |
Autorepaint | Repaint table automatically on data changed
Actions editor:
Property > Table > Layout > Autorepaint
Code:
widget.content.tableAutoRepaint | bool |
Auto index | Update selected index automatically on row clicked
Actions editor:
Property > Table > Layout > Auto index
Code:
widget.content.tableAutoIndex | bool |
List | | |
Selected item scale | Scale of selected item
Actions editor:
Property > Table > List > Selected item scale
Code:
widget.content.tableSelectedScale | double |
Rows | Number of rows in the Grid layout
Actions editor:
Property > Table > List > Rows
Code:
widget.content.tableDelegateRows | int |
Cols | Number of columns in the Grid layout
Actions editor:
Property > Table > List > Cols
Code:
widget.content.tableDelegateCols | int |
Path | | |
Visible items | Number of visible elements
Actions editor:
Property > Table > Path > Visible items
Code:
widget.content.tablePathCount | int |
Item width | Item width
Actions editor:
Property > Table > Path > Item width
Code:
widget.content.tablePathWidth | double |
Item height | Item height
Actions editor:
Property > Table > Path > Item height
Code:
widget.content.tablePathHeight | double |
Opacity | Opacity of last elements
Actions editor:
Property > Table > Path > Opacity
Code:
widget.content.tablePathOpacity | double |
Last item scale | Scale of last items
Actions editor:
Property > Table > Path > Last item scale
Code:
widget.content.tablePathScaleDiff | double |
Angle | Angle of last items
Actions editor:
Property > Table > Path > Angle
Code:
widget.content.tablePathRotation | int |

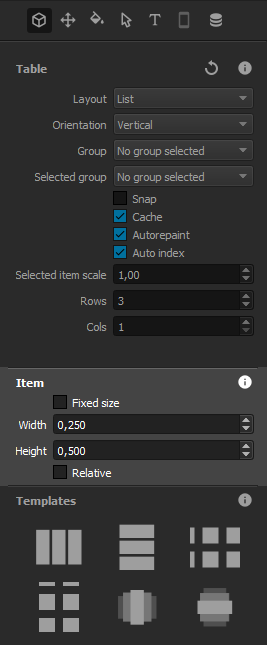

Property | Function | Type |
Fixed size | Enable to set individual item size. The Flow composer automatically arranges items by their size, ignoring rows and cols
Actions editor:
Property > Table > Item > Fixed size
Code:
widget.content.tableDelegateSize | bool |
Width | Item width
Actions editor:
Property > Table > Item > Width
Code:
widget.content.tableDelegateWidth | double |
Height | Item height
Actions editor:
Property > Table > Item > Height
Code:
widget.content.tableDelegateHeight | double |
Relative | If enabled, width and height relative to page size, or relative to widget size
Actions editor:
Property > Table > Item > Relative
Code:
widget.content.tableDelegateSizeRelation | bool |
Property | Function |
Set current index | Actions editor:
Actions > Common > Set current index
Code:
widget.content.script.actionSetRow(int newRow) |
Next index | Actions editor:
Actions > Common > Next index
Code:
widget.content.script.actionNextIndex() |
Prev index | Actions editor:
Actions > Common > Prev index
Code:
widget.content.script.actionPrevIndex() |
Set row id | Actions editor:
Actions > Common > Set row id
Code:
widget.content.script.actionSetRowId(QString newRow) |
Clear selection | Actions editor:
Actions > Common > Clear selection
Code:
widget.content.script.actionClearSelection() |
Clear cache | Actions editor:
Actions > Common > Clear cache
Code:
widget.content.script.actionClearCache() |
Repaint table | Actions editor:
Actions > Common > Repaint table
Code:
widget.content.script.actionTableRepaint() |
Scroll to index | Actions editor:
Actions > Common > Scroll to index
Code:
widget.content.script.actionScrollToIndex(int index) |
Filter data | Actions editor:
Actions > Common > Filter data
Code:
widget.content.script.actionFilter(QString fieldName, QString fieldValue) |
Filter data custom | Actions editor:
Actions > Common > Filter data custom
Code:
widget.content.script.actionFilterCustom(QString comparisonOperator, QString fieldName, QString fieldValue) |
SQL filter | Actions editor:
Actions > Common > SQL filter
Code:
widget.content.script.actionFilterSql(QString whereClause) |
Sort data | Actions editor:
Actions > Common > Sort data
Code:
widget.content.script.actionSort(QString fieldName, bool ascending) |
Clear filters | Actions editor:
Actions > Common > Clear filters
Code:
widget.content.script.actionClearFilter() |
Property | Function |
Current index changed | Event when current index is changed
Actions editor:
Event > Current index changed
Code:
widget.content.script.eventItemIndex() |
