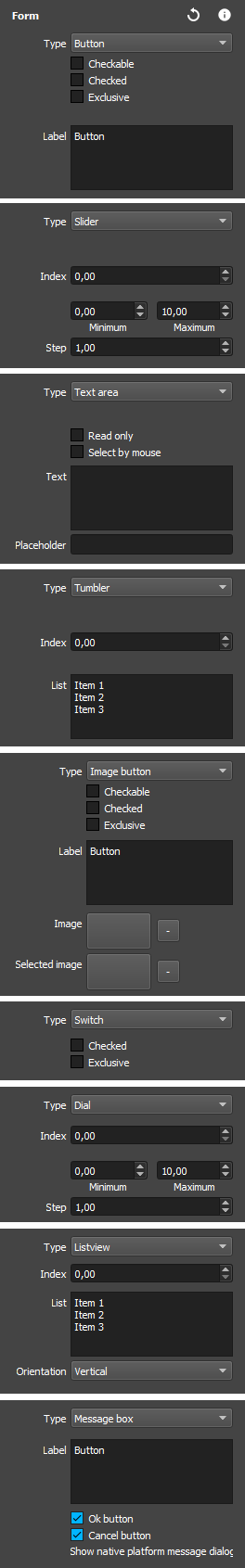

Form

Property | Function | Type |
Type | Form element type
Actions editor:
Property > Form > Type
Code:
widget.content.controlType | enum
Values:
Button
CheckBox
ComboBox
Dial
RadioButton
Slider
SpinBox
TextArea
TextField
Tumbler
ImageButton
Switch |
Checkable | Sets whether the button is checkable
Actions editor:
Property > Form > Checkable
Code:
widget.content.buttonCheckable | bool |
Checked | Sets checked state
Actions editor:
Property > Form > Checked
Code:
widget.content.checked | bool |
Label | Form element label
Actions editor:
Property > Form > Label
Code:
widget.content.label | string |
Text | Form element value
Actions editor:
Property > Form > Text
Code:
widget.content.text | string |
Index | Current index of Tumbler
Actions editor:
Property > Form > Index
Code:
widget.content.currentIndex | double |
Minimum | Slider minimum value
Actions editor:
Property > Form > Minimum
Code:
widget.content.minimumValue | double |
Maximum | Slider maximum value
Actions editor:
Property > Form > Maximum
Code:
widget.content.maximumValue | double |
Step | Slider value step size
Actions editor:
Property > Form > Step
Code:
widget.content.stepSize | double |
List | List of Tumbler values
Actions editor:
Property > Form > List
Code:
widget.content.model | string |
Orientation | Tumbler orientation
Actions editor:
Property > Form > Orientation
Code:
widget.content.controlOrientation | enum
Values:
Qt::Vertical
Qt::Horizontal |
Image | Image for ImageButton element
Actions editor:
Property > Form > Image
Code:
widget.content.buttonImage | string |
Selected image | Selected image for ImageButton element
Actions editor:
Property > Form > Selected image
Code:
widget.content.buttonSelectedImage | string |
Exclusive | Sets exclusive state
Actions editor:
Property > Form > Exclusive
Code:
widget.content.exclusive | bool |
Read only | Sets read only
Actions editor:
Property > Form > Read only
Code:
widget.content.readOnly | bool |
Select by mouse | Sets select by mouse
Actions editor:
Property > Form > Select by mouse
Code:
widget.content.selectByMouse | bool |
Ok button | Show button Ok
Actions editor:
Property > Form > Ok button
Code:
widget.content.okButton | bool |
Cancel button | Show button Cancel
Actions editor:
Property > Form > Cancel button
Code:
widget.content.cancelButton | bool |
Placeholder | Show hint when the text field is empty
Actions editor:
Property > Form > Placeholder
Code:
widget.content.placeholderText | string |
Property | Function |
Set text | Actions editor:
Actions > Common > Set text
Code:
widget.content.script.actionSetText(QString text) |
Check | Actions editor:
Actions > Common > Check
Code:
widget.content.script.actionCheck() |
Uncheck | Actions editor:
Actions > Common > Uncheck
Code:
widget.content.script.actionUnCheck() |
Toggle | Toggle checked state
Actions editor:
Actions > Common > Toggle
Code:
widget.content.script.actionToggle() |
Set index | Set current index
Actions editor:
Actions > Common > Set index
Code:
widget.content.script.actionSetIndex(double index) |
Property | Function |
Text changed | Event when text is changed
Actions editor:
Event > Text changed
Code:
widget.content.script.eventTextChanged() |
Checked | Event when item is checked
Actions editor:
Event > Checked
Code:
widget.content.script.eventChecked() |
Unchecked | Event when item is unchecked
Actions editor:
Event > Unchecked
Code:
widget.content.script.eventUnChecked() |
Toggled | Event when checked state is toggled
Actions editor:
Event > Toggled
Code:
widget.content.script.eventToggled() |
Index changed | Event when index is changed
Actions editor:
Event > Index changed
Code:
widget.content.script.eventIndexChanged() |
Return pressed | Event when return is pressed
Actions editor:
Event > Return pressed
Code:
widget.content.script.eventReturnPressed() |
Accepted | Event when user has pressed Ok
Actions editor:
Event > Accepted
Code:
widget.content.script.eventAccepted() |
Rejected | Event when user has pressed Cancel
Actions editor:
Event > Rejected
Code:
widget.content.script.eventRejected() |
