  1. API
  2. Widget


PreviousWidgetNextText

Last updated 4 years ago

Was this helpful?

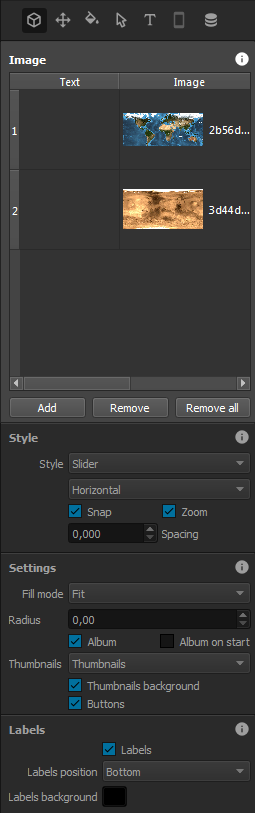

Property

Function

Type

Current label

Current label text Actions editor: Property > Gallery > Current label Code: widget.content.currentLabel

string

Index

Current image index Actions editor: Property > Gallery > Index Code: widget.content.itemIndex

int

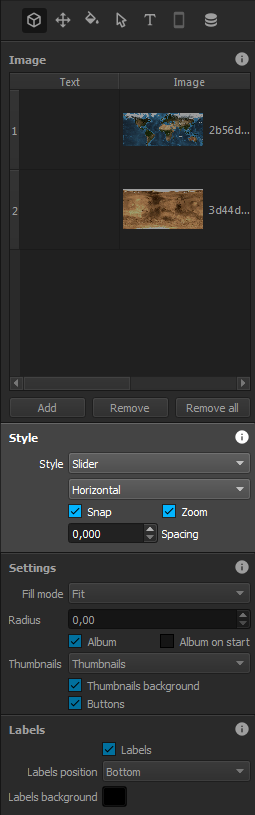

Style

Property

Function

Type

Style

Sets gallery style to Slider, Book, Carousel or Magazine Actions editor: Property > Gallery > Style > Style Code: widget.content.galleryStyle

int

Orientation

Sets gallery orientation to vertical or horizontal Actions editor: Property > Gallery > Style > Orientation Code: widget.content.orientation

enum Values: Qt::Vertical Qt::Horizontal

Snap

Enable to scroll through one image at a time Actions editor: Property > Gallery > Style > Snap Code: widget.content.snapOneItem

bool

Zoom

Disable to prevent image zooming Actions editor: Property > Gallery > Style > Zoom Code: widget.content.enableZoomImage

bool

Spacing

Spacing between images Actions editor: Property > Gallery > Style > Spacing Code: widget.content.listSpacing

double

Carousel

Carousel effect strength Actions editor: Property > Gallery > Style > Carousel Code: widget.content.carousel

int

Two images

Display two images simultaneously Actions editor: Property > Gallery > Style > Two images Code: widget.content.twoImagesBook

bool

Background

Background color Actions editor: Property > Gallery > Style > Background Code: widget.content.bookPageColor

color

Shadow

Display page shadow Actions editor: Property > Gallery > Style > Shadow Code: widget.content.shadowEffect

bool

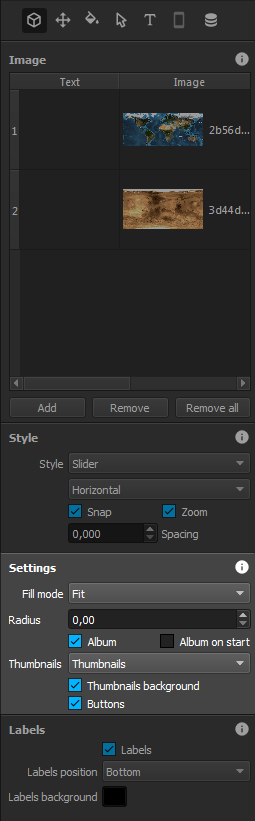

Settings

Property

Function

Type

Fill mode

Sets image fill mode Actions editor: Property > Gallery > Settings > Fill mode Code: widget.content.fillMode

enum Values: Stretch PreserveAspectFit PreserveAspectCrop Tile TileVertically TileHorizontally Pad

Radius

Sets image radius Actions editor: Property > Gallery > Settings > Radius Code: widget.content.radius

double

Album

Disable to prevent switching into album view Actions editor: Property > Gallery > Settings > Album Code: widget.content.enableGridView

bool

Album on start

Enable to launch the gallery show with an album Actions editor: Property > Gallery > Settings > Album on start Code: widget.content.albumOnStart

bool

Thumbnails

Determines when to display thumbnails Actions editor: Property > Gallery > Settings > Thumbnails Code: widget.content.iconsMode

int

Thumbnails background

Display thumbnails background Actions editor: Property > Gallery > Settings > Thumbnails background Code: widget.content.showIconsBg

bool

Buttons

Display navigation buttons Actions editor: Property > Gallery > Settings > Buttons Code: widget.content.showControls

bool

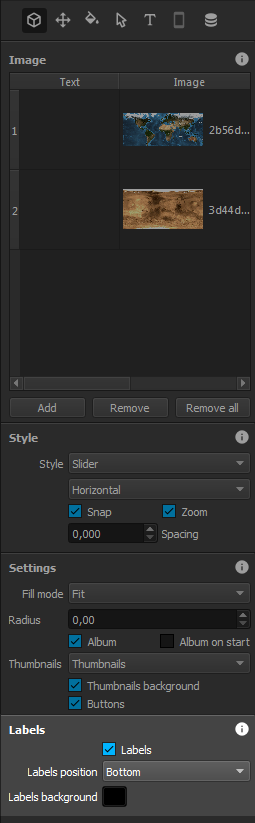

Labels

Property

Function

Type

Labels

Display labels Actions editor: Property > Gallery > Labels > Labels Code: widget.content.showLabels

bool

Labels position

Label vertical alignment Actions editor: Property > Gallery > Labels > Labels position Code: widget.content.verticalAlignment

enum Values: Qt::AlignBottom Qt::AlignTop Qt::AlignVCenter

Labels background

Label background color Actions editor: Property > Gallery > Labels > Labels background Code: widget.content.labelsBackgroundColor

color

Actions

Property

Function

Next

Open next image Actions editor: Actions > Common > Next Code: widget.content.script.actionListForward()

Previous

Open previous image Actions editor: Actions > Common > Previous Code: widget.content.script.actionListBackward()

Item index

Open image by index Actions editor: Actions > Common > Item index Code: widget.content.script.actionItemIndex(int index)

Show album

Actions editor: Actions > Common > Show album Code: widget.content.script.actionShowAlbum()

Set image

Actions editor: Actions > Common > Set image Code: widget.content.script.actionSetImage(QString image)

Add image

Actions editor: Actions > Common > Add image Code: widget.content.script.actionAddImage(QString image)

Clear images

Actions editor: Actions > Common > Clear images Code: widget.content.script.actionClearImages()

Events

Property

Function

Next

Event when next image is displayed Actions editor: Event > Next Code: widget.content.script.eventListedForward()

Previous

Event when prev image is displayed Actions editor: Event > Previous Code: widget.content.script.eventListedBackward()

Item index

Event when current image is changed Actions editor: Event > Item index Code: widget.content.script.eventItemIndex()
