Diorama

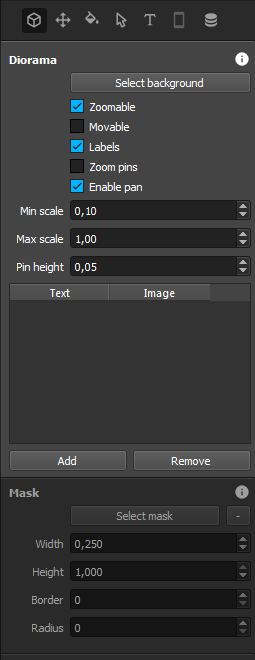

Property | Function | Type |
Background | Background image
Actions editor:
Property > Diorama > Background
Code:
widget.content.backgroundImage | string |
Movable | Allow drag pin
Actions editor:
Property > Diorama > Movable
Code:
widget.content.movable | bool |
Show labels | Display text description when clicking on pin
Actions editor:
Property > Diorama > Show labels
Code:
widget.content.showLabels | bool |
Min scale | Minimum scale value
Actions editor:
Property > Diorama > Min scale
Code:
widget.content.minScale | double |
Max scale | Maximum scale value
Actions editor:
Property > Diorama > Max scale
Code:
widget.content.maxScale | double |
Enable pan | Enable pan
Actions editor:
Property > Diorama > Enable pan
Code:
widget.content.enablePan | bool |
Current label | Current label text
Actions editor:
Property > Diorama > Current label
Code:
widget.content.currentLabel | string |
Current index | Current label index
Actions editor:
Property > Diorama > Current index
Code:
widget.content.currentIndex | int |

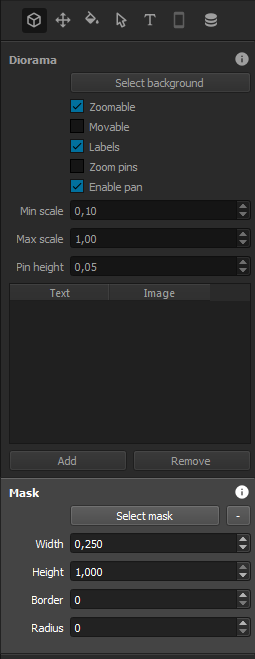

Property | Function | Type |
Image | Mask image
Actions editor:
Property > Diorama > Mask > Image
Code:
widget.content.mapMask | string |
Width | Mask width
Actions editor:
Property > Diorama > Mask > Width
Code:
widget.content.mapWidth | double |
Height | Mask height
Actions editor:
Property > Diorama > Mask > Height
Code:
widget.content.mapHeight | double |
Border | Mask border size
Actions editor:
Property > Diorama > Mask > Border
Code:
widget.content.mapBorderSize | int |
Radius | Mask radius
Actions editor:
Property > Diorama > Mask > Radius
Code:
widget.content.mapRadius | int |
Property | Function |
Center on point | Actions editor:
Actions > Common > Center on point
Code:
widget.content.script.actionCenterOnPoint(double x, double y) |
Show label | Actions editor:
Actions > Common > Show label
Code:
widget.content.script.actionCenterOnItem(int index) |
Zoom | Actions editor:
Actions > Common > Zoom
Code:
widget.content.script.actionZoom(int zoom) |
Unselect All | Actions editor:
Actions > Common > Unselect All
Code:
widget.content.script.actionUnselectAll() |
Property | Function |
Item index | Event when pin is clicked
Actions editor:
Event > Item index
Code:
widget.content.script.eventItemClicked() |
Last modified 2yr ago
